TAKEX SENSOR - UM Series

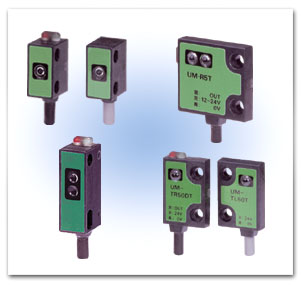

UM series - photo


SEEKA Sensor, TAKEX Sensor- UM



Ultra small size (extremely thin and narrow)

Suitable for installation in a limited space or for building into a compact device

Amplifier built-in type is extremely thin
( thickness is just 3.5mm !)

Capacity

0.8cm3 max.

Capacity rate

Approx 1/5
( Ratio by our company )

Low cost

The visible light source is a red LED,

easy to check transmitter output.

A stability indicator and an operation indicator are fitted.

Wide range of uses,from small scaled to total FA ( factory automation )


DIMENSIONS OUTPUT CIRCUIT PDF DXF
Specifications

Models

UM-T15DT

UM-T15DTV

UM-T50DT

UM-T15DTV

UM-T50DS

UM-R3T

UM-R3TV

UM-R5T

UM-R5TV

UM-Z3SV

Detection

Through beam

Diffuse reflection

Convergent beam

Range (Max.)

150mm

500mm

2 to 30mm

2 to 50mm

5 to 30mm

Object resolution

ø3mm (Min.) Opaque object

-

Power supply

24V DC ± 10%, Ripple 10(Max.) *2

12 - 24V DC ± 10%, Ripple 10(Max.)

Current consump.

NPN
Type
(Max.)

15mA

20mA

27mA

20mA

27mA

27mA

PNP
Type
(Max.)

15mA

22mA

15mA

22mA

15mA

Output mode

NPN Type

NPN Open collector Rating:Sink Current 80mA(DC 30V) Max.

PNP Type

PNP Open collector Rating:Source Current 80mA(DC 30V) Max.

Operating mode

Dark-ON

Light-ON

Response time

0.5ms (Max.)

Operating angle

25°

-

Hysteresis

-

10% (Max.)

Indicator

Oprating: Red LED
Stability: Green LED

Sensitivity

-

SENS. unit

-

SENS. unit

-

-

SENS. unit

-

SENS. unit

SENS. unit

Materials

Case

Liquid crystalline polyester

Lens

Polycarbonate

Hard chloroethene

Polycarbonate

Hard chloroethene

Cable

Flying lead 2m (Outer dia. 2.8mm)

Trns.: 0.15mm2 × 2cores 2m (Gray)
Rcvr.: 0.15mm2 × 3cores 2m (Black)

0.15mm2 × 3cores 2m (Black)

Weight
(Max.)

Trns.

30g

30g

30g

30g

30g

30g

40g

30g

40g

40g

Rcvr.

30g

40g

30g

40g

30g
