COSEL POWER SUPPLY

COSEL is one of the world's leading power supply.

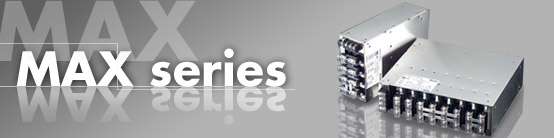

COSEL Power supply : MAX series

MAX Series

COSEL Power supply; Module type standard semi-customized power supplies that can be combined with other modules to create a flexible output configuration. Same as ACE series except for the larger capacity. 3-phase input supports up to 3200W.

COSEL Power supply Product Lineup - MAX series
   | MAX1600F | MAX1600T | MAX3200T |

• Features

• Flexible modular system architecture provides various output configurations
   • Harmonic attenuator (Complies with IEC61000-3-2):MAX1600F
   • Universal input voltage
   • High power factor
   • Various functions
   • Remote ON/OFF control, alarm, parallel operation

• Optional parts

Harness, Bus bar

• Safety agency approvals

• UL60950-1, C-UL (CSA60950-1), EN60950-1
   • Complies with DEN-AN

• CE marking

LVD and EMC directive

• Environment

• RoHS directive

• EMI

• Complies with FCC-B, CISPR22-B,EN55022-B and VCCI-B :MAX1600F
   • Complies with FCC-A, CISPR22-A,EN55011-A and VCCI-A :MAX1600T / MAX3200T

• EMS Compliance:EN61204-3, EN61000-6-2

• EN61000-4-2
   • EN61000-4-3
   • EN61000-4-4
   • EN61000-4-5
   • EN61000-4-6
   • EN61000-4-8
   • EN61000-4-1

• 3-year warranty

More information about Cosel power supply, please visit "Cosel Power Supply" Japan official site.
