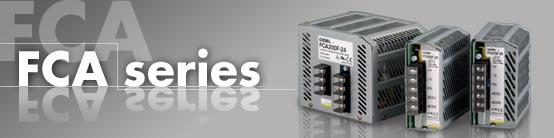

COSEL Power Supply FCA Series

FCA Series

COSEL Power Supply; Single output power supplies which support high input voltage of AC480V (AC187-528V). Designed to support peak current and suited for mechatronics. Optional DIN rail attachment plates are also offered.

COSEL Power Supply Product Lineup: FCA Series
   | FCA50F | FCA75F | FCA200F |

Features

High input voltage (AC187 - 528V)
   • Peak load possible
       FCA50F, FCA75F(at AC240 - 528V)
       FCA200F(at AC323 - 528V)
   • Harmonic attenuator (Complies with IEC61000-3-2) (FCA200F)
   • DIN rail attachment (Optional)
   • Small size

Optional parts: DIN rail Attachment

Safety agency approvals: UL60950-1, C-UL, EN60950-1, EN50178 (FCA50F, 75F)

CE marking

• LVD directive
• EMC directive (FCA200F)

Environment : RoHS directive

EMI: Complies with FCC-A, CISPR11-A, EN55011-A

EMS Compliance

EN61000-4-2
   • EN61000-4-3
   • EN61000-4-4
   • EN61000-4-5
   • EN61000-4-6
   • EN61000-4-11

• 3-year warranty

More information about Cosel power supply, please visit "Cosel Power Supply" Japan official site.
