COSEL POWER SUPPLY

COSEL Power supply is one of the world's leading power supply brand that offers high-quality. -COSEL(Japan)

COSEL Power Supply; ADA Series -www.tjsolution.com

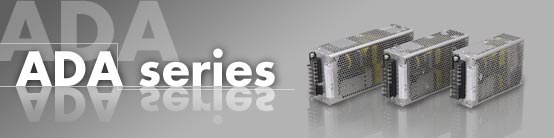

ADA Series-www.tjsolution.com

COSEL Power Supply; single output power supplies with convection cooling and high power & peak power support. Parallel operation/master-slave operation/N+1 redundant operation (optional) support. Complies with IEC61000-3-2.

COSEL Power Supply Product Lineup: ADA Series
   | ADA600F | ADA750F | ADA1000F |

Features

• High power & peak power -www.tjsolution.com
   • Power up with fan (optional)
   • Parallel operation / master-slave operation / N+1 redundant (optional)
   • Harmonic attenuator (Complies with IEC61000-3-2)
   • Universal input voltage (AC85 - 264V)
   • Optional : remote ON/OFF, alarms
   • Current monitor
   • DIN rail (35mm) optional

• Optional parts: Harness,Fan unit,Attachment

Safety agency approvals

• UL60950-1, C-UL(CSA60950-1) recognized, TÜV approved
   • Complies with DEN-AN

• CE marking

Low Voltage Directive
   • EMC Directive

Environment -www.tjsolution.com

• RoHS directive

• EMI

Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B

• EMS Compliance:EN61204-3, EN61000-6-2

• EN61000-4-2
   • EN61000-4-3
   • EN61000-4-4
   • EN61000-4-5
   • EN61000-4-6
   • EN61000-4-8
   • EN61000-4-11

• 5-year warranty (refer to Instruction Manual)


*Please refer to derating curve, because the rated load current depends on cooling method that is convention cooling or forced air. - COSEL Power supply (JAPAN)

More information about Cosel power supply, please visit "Cosel Power Supply" Japan official site.
